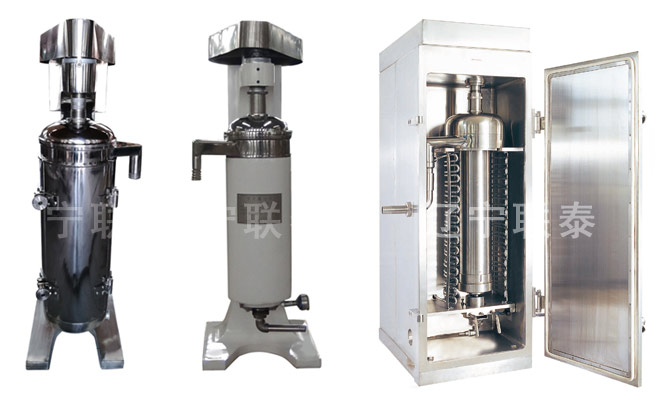

Current page: Home > ProductsTubular centrifuge
Main uses
This product is widely used in biomedicine, traditional Chinese medicine clarification, bacteria recovery, blood products, plant extraction, health products, beverage, chemical, and other industries.
Main features
?♦ Vertical structure and small floor area.
?♦ Flexible shaft, drum is supported by hanging shaft, upper drive.
?♦ Transmission mechanism uses all-closed housing to prevent from dust pollution in transmission process.
?♦ Surface roughness is as high as Ra0.2-0.4um and meets GMP standards.
Configuration selection
?♦ Structure: cylindrical front door, drum type closed, drum type front door, swing type, etc.
?♦ Motor drive: common motor, explosion-proof motor and variable frequency motor
?♦ Distribution mode: panel center distribution and circular cone center distribution
?♦ On-line cleaning: Shower ball and shower pipe
?♦ Transmission housing: Fully-closed and semi-closed
?♦ Drum disassembly: mobile manipulator and mobile workbench
?♦ Temperature control: cooling coil
?♦ Electrical components: Brand supply
?♦ Surface treatment: mirror polishing, drawing and matting
?♦ Safety control: frequency converting control, nitrogen protection, vibration protection, speed monitoring, overload protection, open protection, and electromechanical interlocking
Materials:
?♦ Stainless steel 304, 321, 316 and 316 L
?♦ Carbon steel or cast iron lined with stainless steel

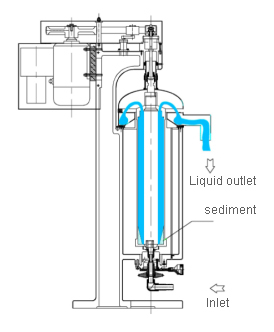

Working process chart
Technical parameters
|
Item |
GQ45 |
GQ75 |
GQ105 |
GQ125 |
GQ150 |
|
Drum diameter (mm) |
45 |
75 |
105 |
125 |
142 |
|
Sedimentation volume (L) |
0.45 |
2 |
5.5 |
7.4 |
10 |
|
Throughput capacity(t/h) |
0.1 |
0.5 |
1.2 |
2 |
3 |
|
Drum speed (r/min) |
28000 |
20000 |
16000 |
15000 |
14000 |
|
Maximum separation factor |
19800 |
16770 |
15025 |
15500 |
15570 |
|
Motor power(kW) |
0.6 |
1.5 |
2.2 |
3 |
3 |
|
Size (mm) |
580*650*750 |
800*400*1200 |
800*700*1400 |
850*700*1600 |
800*700*1600 |
|
Weight (kg) |
120 |
300 |
400 |
560 |
500 |
